Q-G RECEPTACLES
22
CONNECTORS & RECEPTACLES
?
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

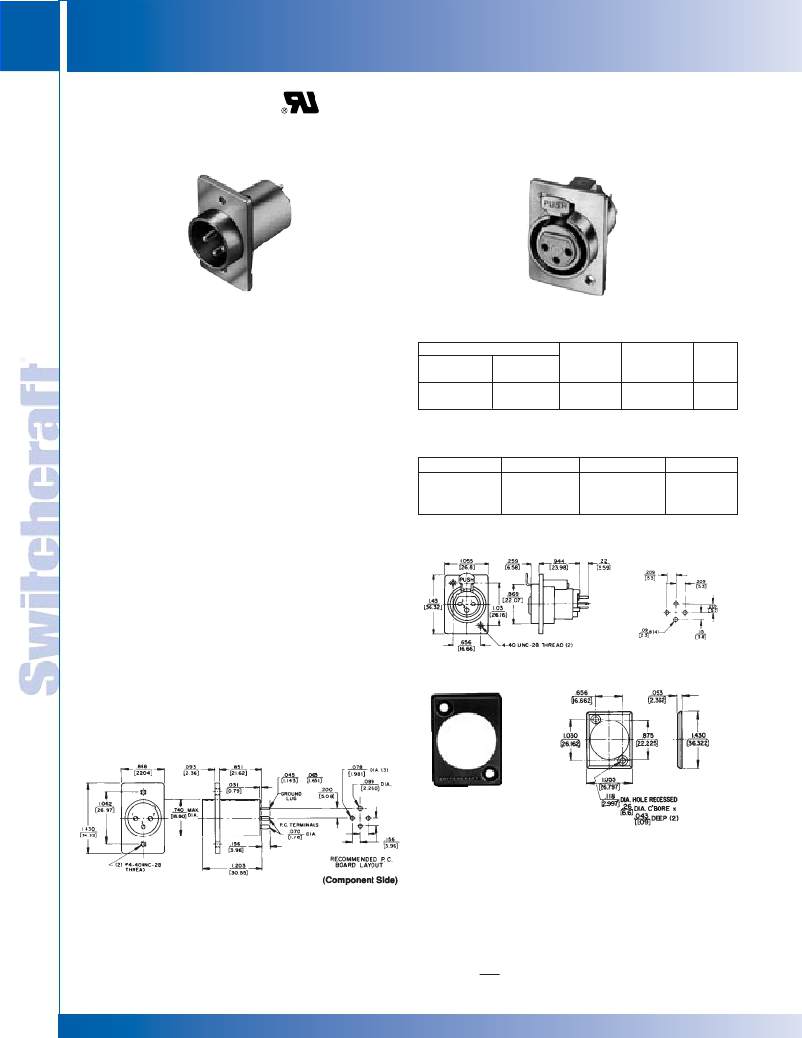

Q-G ? RECEPTACLES
SERIES Y(*)F, Y(3)FPC, Y(*)FD, Y(3)FDPC AND Y(3)MPC RECEPTACLES
Y3MPC
Y3FPC
Series Y(*)MPC. Male receptacle for panel or chassis
RECEPTACLES
mounting escutcheon. PC terminals and standoffs. Rear of
panel mount in .750 inch diameter hole. Maximum panel
thickness: 25 inches (6.35 mm); .156 inches (3.96 mm) if YEM
escutcheon is used.
Part Numbers
Female Female
Latchlock ? Detent ?
Y3F Y3FD
Insert
Contacts
3
Part Number
Male ?
Y3MPC
Insert
Pins
3
Series Y(*)FPC. Female receptacle for panel or chassis
mounting. PC Terminal and standoffs. Rear of panel mount in
.875 inch (22.22 mm) diameter hole.
Series Y(*)F. Female receptacle for panel or chassis mounting.
?Suffix letters “PC” indicate PC terminals; all others have solder lugs.
ESCUTCHEONS
Rear of panel mount in .875 inch (22.22 mm) diameter hole.
Series Y(*)FD, Y(*)FDPC. Female receptacles. Same as Y(*)F
and Y(*)FPC, respectively, except with FAS-DISCONNECT
detent.
Part Number
? YEF01
? YEF02
? YEF03
Color
Red
Black
Green
Part Number
? YEF04
? YEF05
? YEF08
Color
Blue
White
Yellow
SPECIFYING NOTE: YEM02 escutcheon can be ordered on special order; contact
Series YEF Escutcheons. Trim escutcheons provide
Switchcraft.
distinctive panel appearance and can also color code
connections. Available in black (standard), red, green, white,
and yellow. Other colors possible on special order where
production quantities warrant.
ASSEMBLY/MOUNTING
AII receptacles are rear-of-panel mount (units with PC
terminals also mount/terminate to PC board). Flange fastens
to chassis/panel with two #4-40 machine screws (not supplied).
Use of escutcheons is optional.
Install latch release lever (Series Y(*)F and Y(*)FPC) after
receptacle is fastened to chassis/panel. Insert lever in slot from
front and press inward until it locks (snaps) into place. To
remove lever, depress rear of lever (with screwdriver) through
opening at top rear of housing and pull lever straight out.
YEF02
ESCUTCHEONS
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
